Hakkie Pilke 38 Pro
Product Information
Downloads
Addition Images

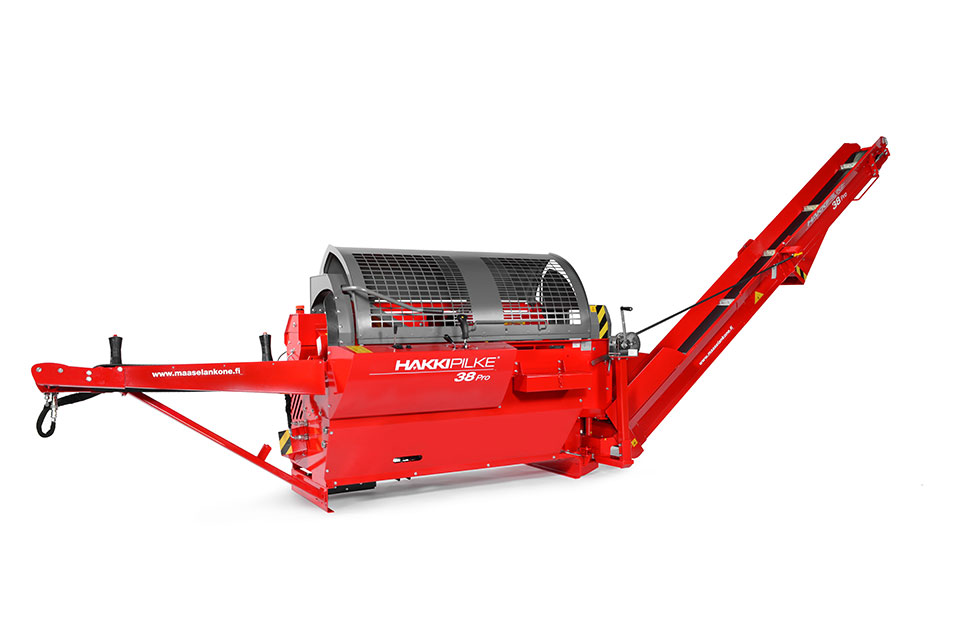

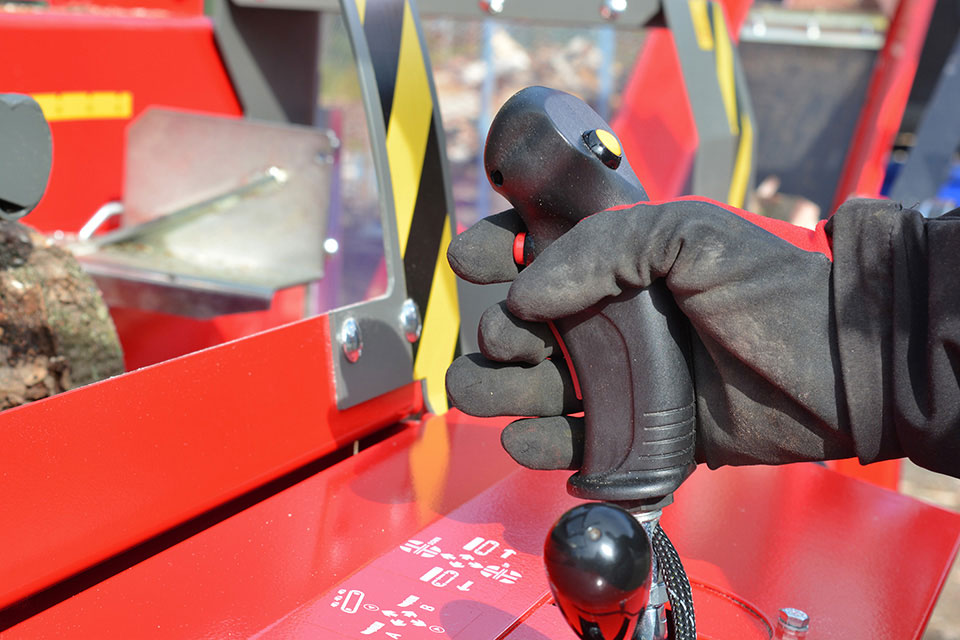

Hakki Pilke 38 Pro brings unparalleled efficiency to firewood processing. An effortless, ergonomic and efficient HakkiCutTM cutting control enables sawing with a single press of a joystick button. During cutting, the lowering speed of the saw bar is automatically adjusted according to the resistance, ensuring an efficient and fast process. At a splitting force of 10 t, the 38 Pro can split even the hardest wood, achieving a splitting cycle of no more than 3 seconds.

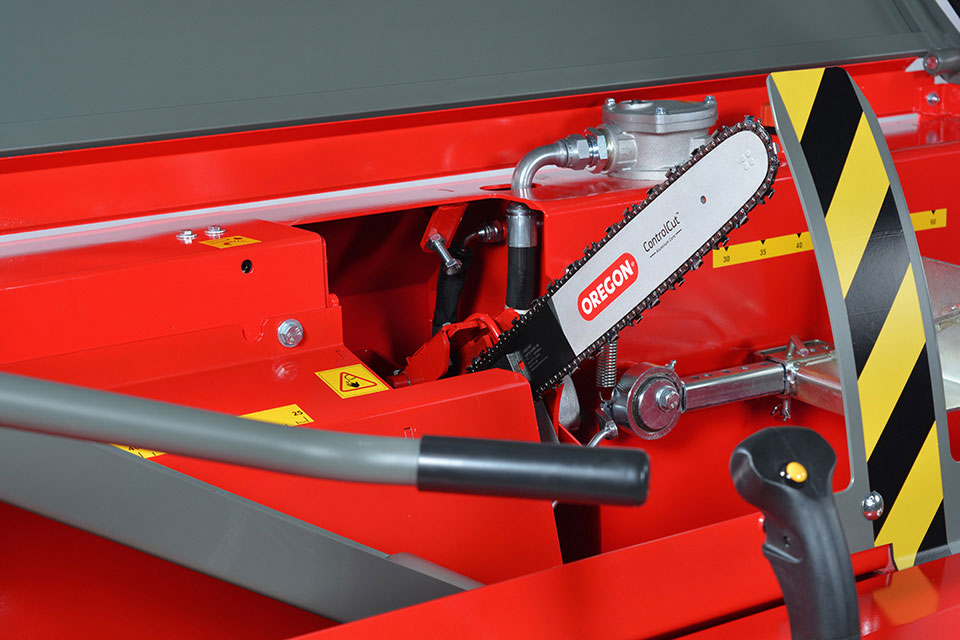

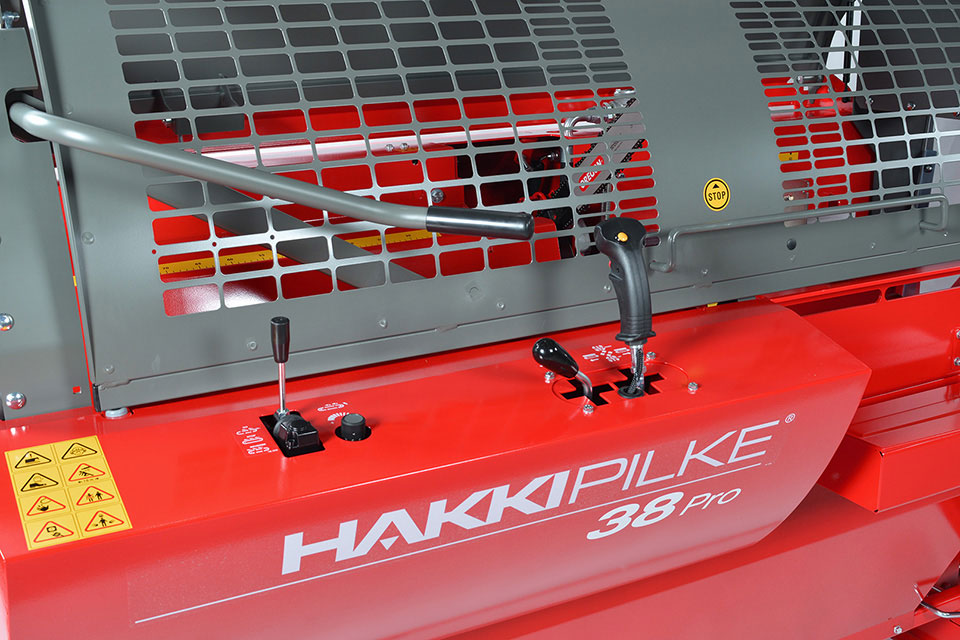

In the 38 Pro processor, the AC10 automatic chain tensioner functions mechanically. The patented AC10 system maintains the chain at optimal tension, improving the efficiency of the sawing process and providing a significant increase to the life span of the chain and bar. In addition to sawing and cutting, the joystick is used to adjust the height of the splitting blade and control the infeed conveyor. The 38 Pro model also features the familiar Hakki Pilke cleaning outfeed conveyor, which separates debris from firewood without any additional accessories. As a new feature, the machine also includes a control valve for the outfeed conveyor – this can be used to reverse or stop the conveyor belt as necessary.
Technical Information
| Max log diamter | 15" |
| Max wood length | 23.6" |
| Max splitting force | 10 ton |
| Saw Chain | .325 1.5mm 68vl |
| Bar | 16" |
| Power source | PTO, sm, or combinaton |
| Electric motor | 10 kW |
| Splitting blade | 2/4 way |
| Outfeed conveyor length | 13.1' |
| Infeed conveyor length | 7.2' |
| Hydraulic infeed belt |
| Infeed serial connection kit + valve |
| Accessory valve |
| Safety cover |
| AC 10(mechanical) |
| HakkiCutTM cutting control |
| Automatically optimized saw press mechanism |
| Automatic chain oil lubrication |
| Hydraulic splitting blade adjustmen |
| Automatic speed valve |
| Pivoting outfeed conveyor |
| Outfeed conveyor speed control + reversal |
| Cleaning outfeed conveyor |
| Tool box |
| Outfeed conveyor extension |
| Blower saw-dust removal |
| Heater for oil |
| Splitting blade 6, 8-way |
| Infeed guide plate |
| Hydraulic pivoting outfeed conveyor |
| Oil cooler |
